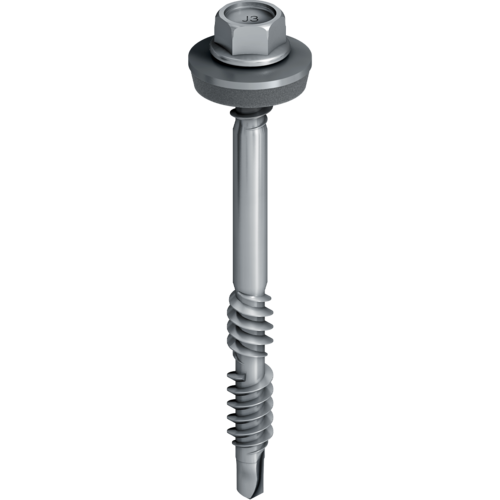

EJOT® self-drilling screw JT3-2H-(40/80)-6.0/6.0
Teknik Özellikler
-
Uygulamalar
- Spacer bolt for fastening profiled steel and aluminium sheets to cassette bars with insulation
- Fastening lesenes to insulated cassette bars
- Also suitable for fastening shear-deformable wall claddings
- For 40 and 80 mm insulations
-
Özellikler
- A2 stainless steel with hardened steel drill point
- Stainless steel sealing washer
- Pre-assembled sealing washer
- Special thread geometry allows a removal of the screw
- No pre-drilling of the outer leaf required
-
Teknik Özellikler
- Diameter: 6.0 mm
- Drilling capacity tI + tII: 1.25 + 2 x 1.0 mm
- Drive: Hexagon A/F8
- Installation rotation speed: max. 1300 rpm
| Sipariş tanımlayıcı | Ürün kodu | Uzunluk mm | Kavrama kalınlığı mm | Birim |
|---|---|---|---|---|
| JT3-2H-80-6,0/6,0x104 E16 | 3594211351 | 104.0 | 80.0 | |
