EJOT® Solar Bağlantı Sistemi JT3-SB-3-8.0xL
Teknik Özellikler
-
Uygulamalar
- For fastening elevated solar and photovoltaic installations to
steel substructures 1.5 - 3 mm - Can also be used for steel substructure ≥ 3.0 mm if predrilled
- For high-strength steel substructures up to S450GD

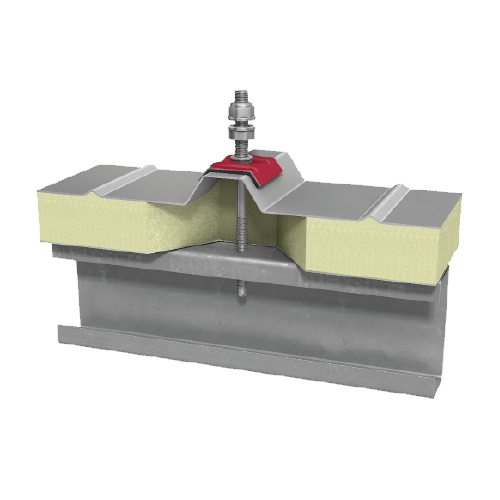

- Suitable for metal trapezoidal and corrugated profile sheets and sandwich panels
- For fastening elevated solar and photovoltaic installations to
-
Özellikler

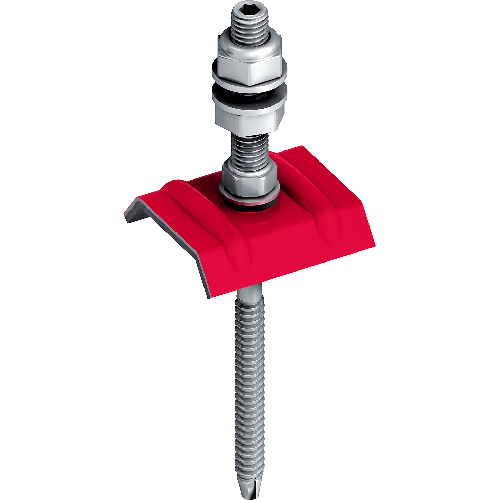

- A2 stainless steel with hardened steel drill point
- In set with sealing washer E16 + ORKAN storm washer
Benefits
- Quick retrofitting on existing installations
- Fastening without pre-drilling (substructure < 3 mm)
- Extremely safe fastening with direct load transfer into the substructure
- No additional holes in the roofing membrane
- Suitable for high-strength steels
- Consistent installation depth
- Use of proven sealing systems
- Durable seal due to solid attachment point
- Minimum installation and tool requirements
- Project-related initial sizing possible
-
Teknik Özellikler
- Screw diameter: 8.0 mm
- A/F5 hexagon drive
- Installation rotation speed: max. 1300 1/min
Notice
The solar fastener components are tailored to your project. Further versions upon request
Order information: ORKAN storm washers must be ordered separately with specification of the storm washer type. Standard scope of delivery includes: Hexagon nut DIN EN ISO 4032, self-locking hexagon nut DIN EN ISO 10511, washers DIN EN ISO 7089. Also available with screw nuts with locking serrations DIN EN ISO 1661.
Filtrele
Seçili filtreler
| Sipariş tanımlayıcı | Ürün kodu | Uzunluk mm | Sıkma kalınlığı mm | Birim |
|---|---|---|---|---|
| Set JT3-SB-3-8,0x85/M10x50 E16 DIN 934 | 3340891905 | 85.0 | 18.0 - 60.0 | 25 |
Teknik Özellikler
|
||||
| Set JT3-SB-3-8,0x115/M10x50 E16 DIN 934 | 3341191905 | 115.0 | 48.0 - 90.0 | 25 |
Teknik Özellikler
|
||||
| Set JT3-SB-3-8,0x155/M10x50 E16 DIN 934 | 3341591905 | 155.0 | 88.0 - 130.0 | 25 |
Teknik Özellikler
|
||||
| Set JT3-SB-3-8,0x195/M10x50 E16 DIN 934 | 3341991905 | 195.0 | 128.0 - 170.0 | 25 |
Teknik Özellikler
|
